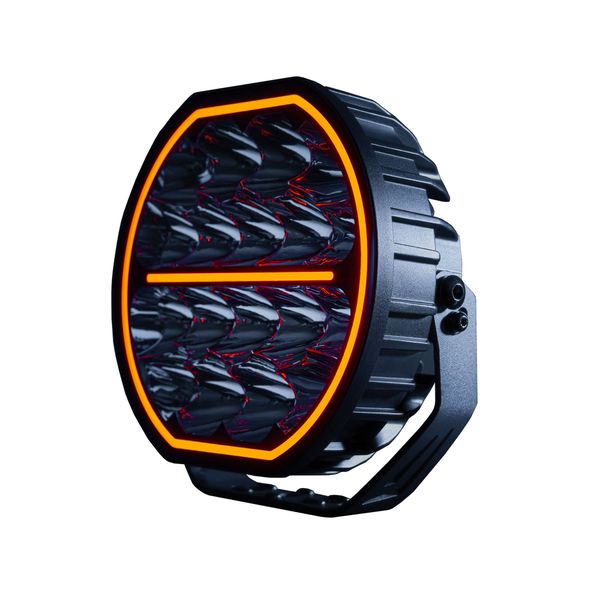

Strands Big Energy 9″ EB – Round / 22 cm / 126W

Strands Big Energy 9″ EB is a version of the Strands Big Energy 9″ auxiliary light with a more intense light beam and a longer range. According to the manufacturer, this lamp produces a light output of 10,700 lumens and a light beam reaching 644 meters (1 @ lux), which is completely designed for Off-Road and construction site use. Big Energy 9″ EB is an auxiliary light with a slender body that is easy to install even in tighter spaces, and thanks to its light structure compared to its size, it is also well suited for the front of smaller vehicles. Even one light produces an excellent range, and when two lights are installed in parallel, for example, the range of the light beam increases almost to kilometer (approx. 911 m @ 1 lux). As the name implies, Big Energy EB brings a huge amount of light power to support your vehicle’s headlights, and it illuminates the terrain ahead, giving the driver the freedom to focus on the most important thing of all, i.e. driving due to its intense spotlight, this light is not approved for road traffic.

Technical information

• Brand and model: Strands Big Energy 9″ EB
• Intended use: As auxiliary light in cars / heavy vehicles / work machines
• Operating voltage: 10-32 V
• Reference number: –
• Current consumption stated by the manufacturer: 8.66 A @ 12V / 4.375 @ 24V
• Calculated power: 126 W
• Power declared by the manufacturer: 104 W @ 12V / 105 W @ 24V
• Theoretical light output: 12600 lm
  • Indicated by the manufacturer: 10700 lm
• Range declared by the manufacturer: 644 m @ 1 lux / 1288 m @ 0.25 lux
• Color temperature stated by the manufacturer: 6500 K
• Mounting: Mounting base
• Connector: Deutsch DT4
• Cable length: approx. 100 cm

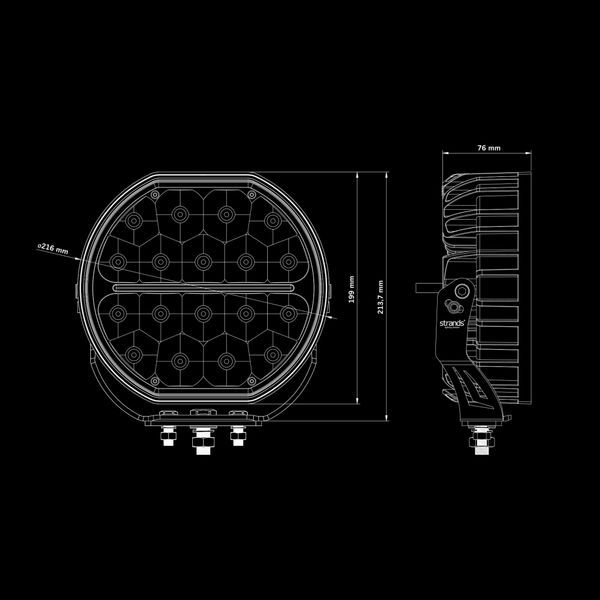

• Dimensions: 216 x 199 x 76 mm (Width x Height x Depth)
  • Height with foot: 213.7 mm
• IP rating: IP68 / IP69K
• Operating temperature: -35°C to +60°C
• Approvals: ECE R10
• Warranty: 36 months
