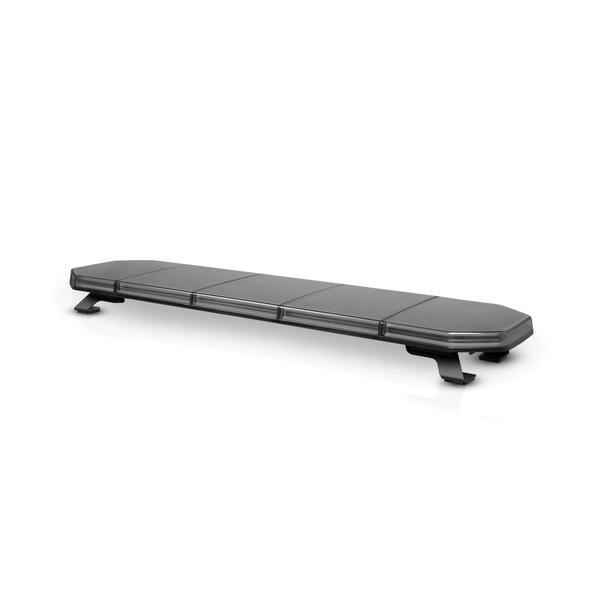

Purelux Flash Panel / 12/24V / 120W / 1000 mm
€270.00
Delivery content
- Beacon panel Purelux Flash 1000 Gen2
- Mounting rails
- Mounting bolts
- Power cord without connector, 5000 mm
- Installation instructions (FI/EN/SE/NO/DK)
Specifications
- Brand and model: Purelux Flash 1000 Gen2
- Intended use: As a warning and safety light in cars / work machines, etc.
- Operating voltage: 10-36V
- Manufacturer’s stated current consumption: 10A @ 12V / 4.6A @ 24V
- Manufacturer’s declared power: 120 W
- Mounting: Mounting foot set, mounting bolts
- Connector: No connector, straight wires
- Cable length: 500 cm
- Dimensions: 984 x 35 x 240 mm (Width/Height/Depth)
- Height with skids: 77 mm
- Weight (with legs): 6400 g
- IP rating: IP69K
- Approvals: EMC: ECE R10, R65 Class 2, CISPR25 Class 5, CE, RoHS
- Operating temperature: -40°C – +50°C
- Warranty: 24 months
- Other: 12 different operating modes, orange light, Ultra low profile, 360° illumination
Operating modes
- Single flash (R65 Class 2 )
- Fast double flash (R65 Class 2)
- Slow double flash
- Multi-flash
- Combo single/double flash output
- Combo single/multiple flash
- Breathe
- Left arrow
- Right arrow
- Arrow from the center
- Cruise (connected with a separate wire, check quick guide)
- R65 Night mode (connected with a separate wire, check quick guide)
